Pneumatic Directional Control Solenoid Valves

No one supplies you with better practical products at such great prices
ADA directional control pneumatic solenoid valves are available in a wide variety of configurations to meet a broad range of pneumatic control air valve applications. Configurations include:
  • Single solenoid, 2-position
  • Double solenoid, 2-position
  • Double solenoid, 3-position, center closed
  • Double solenoid, 3-position, center exhaust
  • Normally closed poppet valve

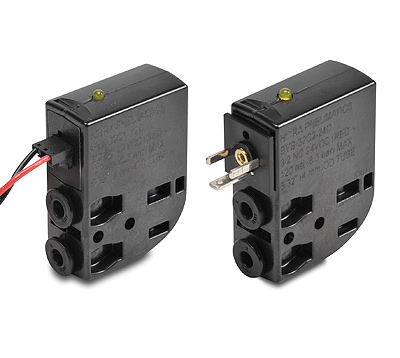

BVS Series Modular Control Solenoid Valves

NITRA™ pneumatic BVS series modular 3-way solenoid valves are body ported 3-port (3-way) poppet valves available in 2-position, normally open or normally closed configurations.

  • Most models have removable flying leads that can be used with BVM series pneumatic manifolds.

  • Two models are available with an 8 mm Micro DIN connector.

  • Units are DIN rail mountable when used with BVM series solenoid valve manifold.
Features
  • Body ported, 3-port (3-way) poppet valves
  • 5/32" (4mm) push-to-connect ports
  • Flow coefficients (Cv) from 0.02 to 0.05
  • 2-position, single solenoid spring return
  • Normally open or normally closed
  • 12 VDC, 24 VDC or 120 VAC solenoid coils with LED status indication
  • Flying leads or 8mm DIN connection
  • Pushbutton manual operator
  • 2-year warranty

NITRA BVS Series Air Solenoid Valves Overview a

 Modular Controls Solenoid Valve / 3-way Solenoid Valve

BVM Series Pneumatic Manifolds for Modular Solenoid Valves

NITRA™ pneumatic BVM series modular solenoid valve manifolds simplify the mounting and wiring of BVS series solenoid valves.

  • Made of sturdy glass reinforced thermoplastic with DIN rail mounting clips included, they are available in 4- and 8-station models.

  • Push-to-connect inlet and out connections and a 9- pin D-sub connector allow quick and easy tubing and wiring.

BVM Series Features
  • No tools required to install/remove valves
  • 4- or 8-station pneumatic manifolds available
  • 6mm or 1/4" tube inlets
  • 35mm DIN rail mounting clips included
  • 9-pin D-sub connector for easy wiring
  • 2-year warranty

NITRA BVM Series Air Solenoid Valve Manifolds Overview a

 NITRA BVM Series Modular Solenoid Control Valve Manifolds
BVM series manifold with modular BVS series valves and blanking plug installed

3/2-way Single solenoid valves for pneumatic control applications
3-Port, 2-Position (AZ Series)
d

G 1/8 Ports
N701 321ME-1 3/2 1/8" NC solenoid valve- spring return with 12VDC coil and plug-in connector
N702 321ME-2 3/2 1/8" NC solenoid valve- spring return with 24VDC coil and plug-in connector
N703 321ME-3 3/2 1/8" NC solenoid valve- spring return with 24VAC coil and plug-in connector
N704 321ME-4 3/2 1/8" NC solenoid valve- spring return with 110VAC coil and plug-in connector
N705 321ME-5 3/2 1/8" NC solenoid valve- spring return with 240VAC coil and plug-in connector

G 1/4 Ports
N706 322ME-1 3/2 1/4" solenoid valve- spring return with 12VDC coil and plug-in connector
N707 322ME-2 3/2 1/4" solenoid valve- spring return with 24VDC coil and plug-in connector
N708 322ME-3 3/2 1/4" solenoid valve- spring return with 24VAC coil and plug-in connector
N709 322ME-4 3/2 1/4" solenoid valve- spring return with 110VAC coil and plug-in connector
N710 322ME-5 3/2 1/4" solenoid valve- spring return with 240VAC coil and plug-in connector



5/2-way Single solenoid valves for pneumatic control applications
5-Port, 2-Position (AZ Series)



G 1/8 Ports
N751 521ME-1 5/2 1/8" solenoid valve - spring return with 12VDC coil and plug-in connector
N752 521ME-2 5/2 1/8" solenoid valve - spring return with 24VDC coil and plug-in connector
N753 521ME-3 5/2 1/8" solenoid valve - spring return with 24VAC coil and plug-in connector
N754 521ME-4 5/2 1/8" solenoid valve - spring return with 110VAC coil and plug-in connector
N755 521ME-5 5/2 1/8" solenoid valve - spring return with 240VAC coil and plug-in connector




G 1/4 Ports
N756 522ME-1 5/2 1/4" solenoid valve- spring return with 12VDC coil and plug-in connector
N757 522ME-2 5/2 1/4" solenoid valve- spring return with 24VDC coil and plug-in connector
N758 522ME-3 5/2 1/4" solenoid valve- spring return with 24VAC coil and plug-in connector
N759 522ME-4 5/2 1/4" solenoid valve- spring return with 110VAC coil and plug-in connector
N760 522ME-5 5/2 1/4" solenoid valve- spring return with 240VAC coil and plug-in connector



G 1/2 Ports
N761 CS-541-15-12VDC 5/2 1/2" Single Solenoid Valves with 12VDC coil and plug-in connector
N762 CS-541-15-24VDC 5/2 1/2" Single Solenoid Valves with 24VDC coil and plug-in connector
N763 CS-541-15-24VAC 5/2 1/2" Single Solenoid Valves with 24VAC coil and plug-in connector
N764 CS-541-15-110VAC 5/2 1/2" Single Solenoid Valves with 110VAC coil and plug-in connector
N765 CS-541-15-240VAC 5/2 1/2" Single Solenoid Valves with 240VAC coil and plug-in connector

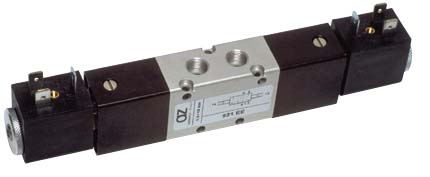

5/2-way Double solenoid valves for pneumatic control applications
 d
5-Port, 2-Position (AZ Series)



G 1/8 Ports
N771 521EE-1 5/2 1/8" double solenoid valve with 12VDC coils and plug-in connectors
N772 521EE-2 5/2 1/8" double solenoid valve with 24VDC coils and plug-in connectors
N773 521EE-3 5/2 1/8" double solenoid valve with 24VAC coils and plug-in connectors
N774 521EE-4 5/2 1/8" double solenoid valve with 110VAC coils and plug-in connectors
N775 521EE-5 5/2 1/8" double solenoid valve with 240VAC coils and plug-in connectors





G 1/4 Ports
N776 522EE-1 5/2 1/4" double solenoid valve with 12VDC coils and plug-in connectors
N777 522EE-2 5/2 1/4" double solenoid valve with 24VDC coils and plug-in connectors
N778 522EE-3 5/2 1/4" double solenoid valve with 24VAC coils and plug-in connectors
N779 522EE-4 5/2 1/4" double solenoid valve with 110VAC coils and plug-in connectors
N780 522EE-5 5/2 1/4" double solenoid valve with 240VAC coils and plug-in connectors




a    G 1/2 Ports
N781 CS-542-15-12VDC 5/2 1/2" Double Solenoid Valves with 12VDC coils and plug-in connectors
N782 CS-542-15-24VDC 5/2 1/2" Double Solenoid Valves with 24VDC coils and plug-in connectors
N783 CS-542-15-24VAC 5/2 1/2" Double Solenoid Valves with 24VAC coils and plug-in connectors
N784 CS-542-15-110VAC 5/2 1/2" Double Solenoid Valves with 110VAC coils and plug-in connectors
N785 CS-542-15-240VAC 5/2 1/2" Double Solenoid Valves with 240VAC coils and plug-in connectors




Pneumatic Solenoid Valve Accessories
Pneumatic valve manifolds, blanking plates, mounting brackets, stacking screw kit, plug tops and coils.



val
N1001 00.021.3 Modular sub-base 1/8 valves
N1002 01.032.4 Multile Sub-base kit for 1/4" spool valve
N1003 00.023.3 1/8" left hand header kit
N1004 00.024.3 1/8" right hand header kit
N1005 01.033.4 1/4" left hand header kit
N1006 01.045.4 1/4" right hand header kit
N1007 00.011.3 1/8" blanking plate kit
N1008 01.007.3 1/4" blanking plate kit









Spare Coils and Plug Tops



*Solenoid valve prices are complete with coils and plug tops std . Other voltages are available exstock

N691 00.167.0 12VDC coil
N692 00.028.0 24VDC coil
N693 00.029.0 24VAC coil
N694 00.030.0 110VAC coil
N695 00.031.0 220VAC coil
N690 00.197.0 Black standard connector


18mm solenoid valves for pneumatic control applications
    18mmm Air Solenoid Valves Overview  a

N797 5/2 way double solenoid pilot valve with coils and plug-in connectors






N792 851 ME 01 24Vdc 5/2 way single solenoid valve with spring return and coils and plug-in connector


*18mm Solenoid valve prices are complete with 15mm, 24Vdc coils and plug tops std with LED indication

BS851 Individual sub-base for 18mm VDMA valves

N971 BS851 Individual sub-base for 18mm VDMA valves (05.029.1)



N972 05.052.1 2 station manifold for 18mm VDMA valves
N973 05.053.1 3 station manifold for 18mm VDMA valves
N974 05.054.1 4 station manifold for 18mm VDMA valves
N975 05.055.1 5 station manifold for 18mm VDMA valves
N976 05.056.1 6 station manifold for 18mm VDMA valves


  AZ Series Air Solenoid Valves Overview a
