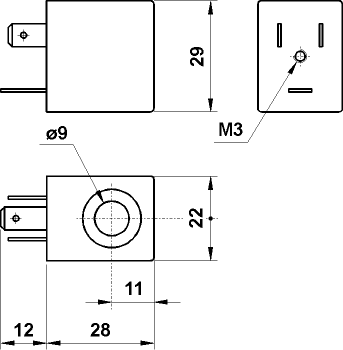

Coils and connectors 22 mm

Code Tension Power

rated inrush

00.167.0 12V DC 3W

00.028.0 24V DC 3W

00.029.0 24V 50/60 Hz 5VA 7.5VA

00.030.0 110V 50/60 Hz 5VA 7.5VA

00.031.0 220V 50/60 Hz 5VA 7.5VA

Max working temperature: +50°C
Duty cycle: ED 100%
Tension tolerance: ±10%
Protection with connector correctly mounted: IP 65
Low consumption (1.5W) on request

AUTOCAD ver 14. DWG

JPG

ACIS - SAT

STEP

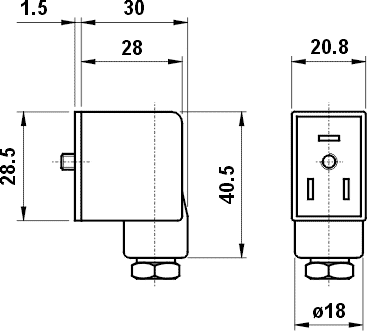

Code Colour Cable Type

00.197.0 black PG09 standard

00.344.0 transparent PG09 with LED 24V

00.345.0 transparent PG09 with LED 24V and VDR

00.346.0 transparent PG09 with LED 115V

00.347.0 transparent PG09 with LED 115V and VDR

00.394.0 transparent PG09 with LED 230V

00.395.0 transparent PG09 with LED 230V and VDR

AUTOCAD ver 14. DWG

JPG

ACIS - SAT

STEP

Code	Colour	Cable	Type
00.197.0	black	PG09	standard
00.344.0	transparent	PG09	with LED 24V
00.345.0	transparent	PG09	with LED 24V and VDR
00.346.0	transparent	PG09	with LED 115V
00.347.0	transparent	PG09	with LED 115V and VDR
00.394.0	transparent	PG09	with LED 230V
00.395.0	transparent	PG09	with LED 230V and VDR
