Productivity3000® Programmable Automation Controller - DC I/O

... more cost effective than any control solution in the market!

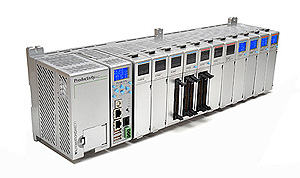

The Productivity3000 programmable automation controller (PAC) is a compact logic controller that combines the features and capabilities of a PC-based control system with that of a typical programmable logic controller (PLC). The Productivity3000 PAC offers you a more powerful control solution that is easier to use and more cost effective than any control solution in the market.
  • Modular, Rack-based System
    With 36 discrete and analog I/O option modules, up to 115,000+ I/O points

  • Built-in Local, Remote and Expansion I/O Capabilities
    On the CPU module, no additional master modules required

  • Easy Configuration with Module Plug and Play
    Auto-discover local and remote bases, I/O and GS drives

  • Hot-swappable I/O
    Exchange modules or complete remote bases without interrupting your process

  • No Module Placement Restrictions
    Any module in any slot, in any base

  • No Power Budget Limitations
    No restrictions means any module, any slot, any base (local, remote or expansion) as many as you want

  • Full TWO-Year Warranty
    And full-featured FREE PAC programming software

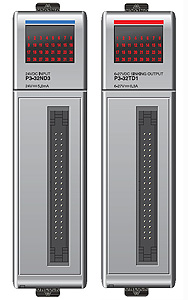

DC I/O
A wide variety of 8, 16, 32 and 64-point sinking or sourcing discrete I/O modules are available for use in local, expansion, and remote I/O bases. Isolated commons and I/O status indicators on each module.


Productivity3000 PAC - DC Input Modules

PART NO. DESCRIPTION PRICE INFO
P3-08ND3S (8) isolated 12-24 VDC inputs, sink/source $120.00 P3-08ND3S DC input module Overview
P3-16ND3 (16) 12-24 VDC inputs, sink/source, 4 isolated commons $195.00 P3-16ND3 DC input module Overview
P3-32ND3 (32) 24 VDC inputs, sink/source,
4 isolated commons		 $265.00 P3-32ND3 DC input module Overview
P3-64ND3 (64) 24 VDC inputs, sink/source,
8 isolated commons		 $330.00 P3-64ND3 DC input module Overview


Productivity3000 PAC - DC Output Modules

PART NO. DESCRIPTION PRICE INFO
P3-08TD1S (8) 6-27 VDC outputs, sinking,
4 isolated commons		 $145.00 P3-08TD1S DC output module Overview
P3-08TD2S (8) 6-27 VDC outputs, sourcing,
4 isolated commons		 $146.00 P3-08TD2S DC output module Overview
P3-16TD1 (16) 6-27 VDC outputs, sinking,
2 isolated commons		 $210.00 P3-16TD1 DC output module Overview
P3-16TD2 (16) 6-27 VDC outputs, sourcing,
2 isolated commons		 $210.00 P3-16TD2 DC output module Overview
P3-32TD1 (32) 6-27 VDC outputs, sinking,
4 isolated commons		 $265.00 P3-32TD1 DC output module Overview
P3-32TD2 (32) 6-27 VDC outputs, sourcing,
4 isolated commons		 $265.00 P3-32TD2 DC output module Overview
P3-64TD1 (64) 6-27 VDC outputs, sinking,
8 isolated commons		 $330.00 P3-64TD1 DC output module Overview
P3-64TD2 (64) 6-27 VDC outputs, sourcing,
8 isolated commons		 $330.00 P3-64TD2 DC output module Overview
