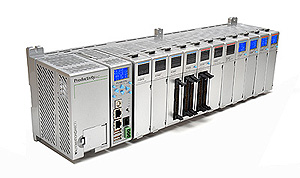

The Productivity3000
programmable automation controller (PAC) is a compact
controller that combines the features and capabilities of a
PC-based control system with that of a typical programmable
logic controller (PLC). The Productivity3000 PAC offers you a
more powerful control solution that is easier to use and more
cost effective than any control solution in the market.
- Modular,
Rack-based System
With 36 discrete
and analog I/O option modules, up to 115,000+ I/O
points
- Built-in
Local, Remote and Expansion I/O Capabilities
On the CPU module, no additional
master modules required
- Easy
Configuration with Module Plug and Play
Auto-discover local and remote bases, I/O and GS
drives
- Hot-swappable
I/O
Exchange modules or complete
remote bases without interrupting your process
- No Module
Placement Restrictions
Any module in
any slot, in any base
- No Power
Budget Limitations
No restrictions
means any module, any slot, any base (local, remote or
expansion) as many as you want
- Full
TWO-Year Warranty
And full-featured
FREE PAC programming software

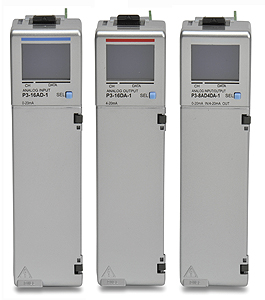

Analog
I/O
A variety of voltage and current analog
I/O modules plus thermocouple and RTD input modules are
available for use in local, expansion, and remote I/O bases. Patent-pending LCD display on all analog modules for
troubleshooting and easy access to analog
values.
Productivity3000
Analog Input Modules
| Part No. |
Description |
Price |
Info |
| P3-04ADS |
(4) isolated inputs, +/- 10
VDC,
0-5 VDC, 0-10 VDC, 0-20mA |
$650.00 |
_files/icon-pdf.gif) |
| P3-08AD |
(8) inputs, +/- 10 VDC, +/- 5 VDC, 0-5
VDC, 0-10 VDC, 0-20mA |
$495.00 |
|
| P3-16AD-1 |
(16) inputs, 0-20mA |
$590.00 |
|
| P3-16AD-2 |
(16) inputs, 0-10 VDC |
$595.00 |
|
| P3-08RTD |
(8) differential inputs,
RTD &
resistance inputs |
$750.00 |
|
| P3-08THM |
(8) differential inputs,
thermocouple
& voltage inputs |
$825.00 |
|
Productivity3000
Analog Output Modules
| Part No. |
Description |
Price |
Info |
| P3-04DA |
(4) outputs, +/-10VDC or 4-20mA
sink/source outputs |
$620.00 |
|
| P3-08DA-1 |
(8) outputs, 4-20mA
sourcing
outputs |
$990.00 |
|
| P3-08DA-2 |
(8) outputs, +/-10VDC |
$990.00 |
|
| P3-06DAS-1 |
(6) outputs,
4-20mA,
channel-to-channel isolated |
$990.00 |
|
| P3-06DAS-2 |
(6) outputs, +/-10VDC,
channel-to-channel isolated |
$1150.00 |
|
| P3-16DA-1 |
(16) outputs, 4-20mA,
sourcing
outputs |
$1100.00 |
|
| P3-16DA-2 |
(16) outputs, +/-10VDC |
$1100.00 |
|
Productivity3000
Analog Input/Output Modules
| Part No. |
Description |
Price |
Info |
| P3-8AD4DA-1 |
(8) inputs, 0-20mA
sinking
(4) outputs, 4-20mA, sourcing |
$695.00 |
|
| P3-8AD4DA-2 |
(8) inputs, 0-5VDC, 0-10VDC
(4)
outputs, 0-5VDC, 0-10VDC |
$695.00 |
|
|
