Productivity3000®
PAC Software & Cables
... more cost
effective than any control solution in the
market!
ProductivitySuite
Programming Software

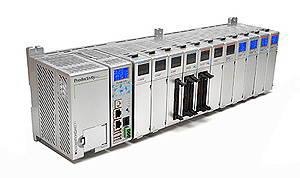

The
Productivity3000 programmable automation controller (PAC) is a
compact controller that combines the features and capabilities
of a PC-based control system with that of a typical
programmable logic controller (PLC). The Productivity3000
offers you a more powerful control solution that is easier to
use and more cost effective than any control solution in the
market.
ProductivitySuite is user-friendly programming
software designed to allow quick and easy programming of
ladder logic programs for the Productivity3000 PAC. The online
help file provides information that will help you get
acquainted with the software quickly.
- User Defined
Tag-based Programming
Descriptive naming
of I/O points and other internal tags that make sense for
the application
- Strong data typing to reduce obscurity
- Arrays for process management (easier data management,
recipe handling)
- Simple to
Use Instructions
Practical instructions
that help solve problems
- No stack to manipulate
- Easy math eliminates the need for using complex rungs
to do simple calculations
- Application
Tools
Allow quick access to many of the
advanced features of the ProductivitySuite software
- Setup – Hardware Config, Security
Accounts, Set PAC Time/Date
- Write Program – Tag Database, I/O
Overview, Rung Comments
- Monitor & Debug – Data View, Data
Logger, PID Tuning, Bit Histogram, Word Histogram, PAC
Error History, PAC Event History
- Control PAC – Offline, Online, Choose
PAC, Transfer to PAC, Run, Stop, Debug
- Task
Management
Task Manager allows quick and
easy prioritization of Ladder Logic code. By breaking code
into logical tasks, the task manager can then easily change
priorities or disable parts of the code.
- Run First Scan Only, Run Every Scan, Run Every Second,
Run When Called, Disable Task
|
|
Application
Instructions
- Contacts (5) – NO, NC, NOE (NO Edge),
NCE (NC Edge), CMP (Compare)
- Coils (10) – Out, Set, Reset, OR,
Flasher, Debounce, Timed, Toggle, Program End, No Operation
- Application functions (12) – Alarm,
Average, Change, Min/Max, Learn Alarm, Limit, Ramp, Ramp
Generator, Scale (linear), Scale (nonlinear), Summation,
Switch
- Array functions (4) – Array Statistics,
Copy, Fill, Shift/Rotate
- Counters/Timers (4) – Simple Counter,
Counter, Simple Timer, Timer
- Communications (13) – ASCII in, ASCII
Out, Clear Serial Port Buffer, Custom Protocol In, Custom
Protocol Out, GS Drive Read, GS Drives Write, Modbus Read,
Modbus Write, Send Email, DataWorx Request
- Data Handling (13) – Absolute Encoder,
Compare Values, Copy Data, FIFO/LIFO, First Bit On/Off,
Inc/Dec, Logical Bits, Logical Words, Lookup Table, Pack
Bits, Shift/Rotate Bits, Sign Magnitude, UnPack Bits
- Drum sequencers (2) – Drum, Sequencer
- Math functions (2) – Math Editor
(MATH), Data Statistics
- PID (2) – PID Loop, Ramp/Soak
- Program control (6) – Call Task, For
Loop, For Loop Break, Next Block, Stop Program, User Defined
Fault
- String functions (7) – Compare Strings,
Copy Character, Extract String, Find String, Pack String,
UnPack String, String Length
- System functions (2) – LCD Page, Set
PAC Time
ProductivitySuite
PAC Programming Software & Cables
| PART NO. |
DESCRIPTION |
PRICE |
INFO |
| P3-PGMSW |
Productivity3000 PAC programming and documentation
software
Free Download |
$725.00 |
 |
| P3-USER-M |
Productivity3000 User Manual
Free Download |
$50.00 |
|
| USB-CBL-AB3 |
3 ft. (0.9 meter) standard USB 2.0 cable with A plug
to B plug |
$30.00 |
|
| USB-CBL-AB6 |
6 ft. (1.8 meter) standard USB 2.0 cable with A plug
to B plug |
$30.00 |
|
| USB-CBL-AB10 |
10 ft. (3 meter) standard USB 2.0 cable with A plug
to B plug |
$40.00 |
|
| USB-CBL-AB15 |
15 ft. (4.6 meter) standard USB 2.0 cable with A
plug to B plug |
$40.00 |
|
|
Software
Features
- Built-in database connectivity
- Tag name based programming
- Powerful task manager
- Easy integration with C-more HMI
- Auto-discover I/O modules
- Auto-discover variable frequency drives (VFDs)
- Documentation stored on CPU
- Comprehensive HELP files
- Plug and play USB programming
- Ethernet programming
- Nimble math instructions
- Multi-level security options
- Run-time edits
- Application specific instructions
PC
Requirements
- Windows® 2000 Service Pack 4, XP Home or Professional,
or Vista (32 bit only).
- Personal Computer with a 333 MHz or higher processor
- SVGA 800x600 pixels resolution (1024x768 pixels
resolution recommended)
- 150MB free hard-disk space
- 128MB free RAM (512MB recommended)
- CD-ROM or DVD drive for installing software from the CD
- USB or Ethernet port for project transfer to PAC
|
