• PAC CPU Processing Power
  Built-in LCD on the powerful P3-550 CPU and P3-RS Remote Slave for quick and simple configuration and diagnostics


• Industry Leading 7 Communication Ports
  Including built-in local expansion and Ethernet remote I/O ports standard on the P3-550 CPU (no remote I/O capability on the P3-530 CPU)


• USB Programming and USB Data Logging
  Right on the P3-550 CPU - No configurations needed to get connected; log data and transfer projects to and from the CPU with a USB removable drive. (NOTE: There is no USB programming on the P3-530 Basic CPU)


• Full TWO-Year Warranty
  And full-featured FREE PAC programming software

• CPU, Remote & Expansion Modules

• P3-550 Standard CPU Module
  The P3-550 is a full-featured, high-performance CPU. Features include a 4 line x 10 character LCD display and seven communication ports which support USB, Ethernet and Serial devices.

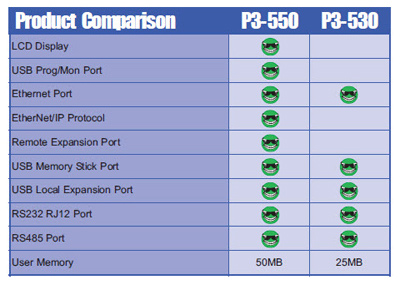

• P3-530 Basic CPU Module
  The P3-530 is a lower cost full-featured, high-performance CPU (without the LCD display) and with five communication ports which support USB, Ethernet and Serial devices.


• P3-EX Expansion Module
  The P3-EX high-performance expansion module provides local I/O expansion to a CPU or Remote I/O. Includes 6-foot USB expansion cable.


• P3-RS Remote Slave Module
  The P3-RS is a full-featured, high-performance Remote Slave module. Features include a 4 line x 10 character LCD display and five communications ports which support USB programming/monitoring, USB local expansion, Ethernet, and Serial devices. Up to 16 P3-RS Remote Slaves can be connected to a single P3-550 CPU remote I/O network.

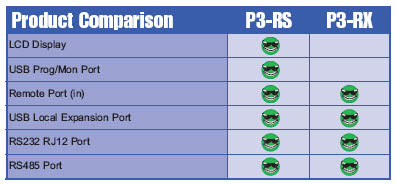

• P3-RX Remote Slave Module
  The P3-RX is a lower cost full-featured, high-performance Remote Slave module (without the LCD display) and with four communications ports which support USB local expansion, Ethernet, and Serial devices. Up to 16 P3-RX Remote Slaves can be connected to a single P3-550 CPU remote I/O network.

• Auto set-up and discovery of hardware
• Tag name database programming
• Task management
• Advanced “fill-in-the-blank” instructions
• Seamless Database connectivity
• Graphical HTML-based Help File
• Run-time editing
• Project file and user documentation stored in CPU
• USB data logging on the CPU
• Tag database import to C-more HMI
• All in an intuitive Windows-based programming environment

• High-performance CPU with 50Mb memory, fast scan time
• Modular rack-based footprint with 36 discrete and analog I/O option modules, up to 115K+ I/O
• Unmatched built-in communications capabilities, including local and remote I/O ports and networking
• Integrated drive communications over Ethernet
• LCD display on CPU and Remote Slave for configuration and diagnostics
• Patent-pending LCD display on ALL analog modules - multimeter not required for troubleshooting or reading process values
• Hot-swappable I/O
• No module placement restrictions - any module in any slot, any base
• No power budget limitations
• Optional I/O terminal blocks or easy ZIPLink plug-and-play wiring

• P3-550 - full-featured, high performance CPU
• P3-RS - remote slave module
• P3-EX - expansion module

• P3-03B, P3-05B, P3-08B, and P3-011B are 3, 5, 8, and 11-slot, local, expansion, and remote I/O bases

• P3-01AC AC power supply - 100-120 VAC
• P3-01DC DC power supply - 24-48 VDC

• 8-pt Isolated Sinking/Sourcing DC Inputs
• 16, 32, 64-pt Sinking/Sourcing DC Inputs
• 8-pt Isolated Sinking DC Outputs
• 8-pt Isolated Sourcing DC Outputs
• 16, 32, 64-pt Sinking DC Outputs
• 16, 32, 64-pt Sourcing DC Outputs

• 8, 16-pt 100-240 VAC inputs
• 8, 16-pt 100-240 VAC outputs
• 8-pt, 2A relay outputs
• 8-pt, 5A relay outputs
• 16-pt 1.25A relay outputs

• 4, 8, 16 channel inputs
• +/-10 VDC, 0-5 VDC, 0-10 VDC, 0-20 mA, RTD and thermocouple inputs
• 4, 6, 8, 16 channel outputs
• +/-10 VDC, 4-20 mA outputs

• P3-16SIM - Input Simulator with 16 toggle switches
• P3-FILL - filler module protects unused I/O module slots

• P3-PGMSW ProductivitySuite PAC programming software

• This module accepts Pulse/Direction and Quadrature signals on each of the two independent input channels.


• It also provides four general purpose high-speed inputs and four general purpose 5-24 VDC 0.5 amp, outputs.

High Speed Modules

• The high-speed output module has both line driver and open drain outputs.


• Additionally, it has six general purpose high-speed inputs and four general purpose outputs.


• Simple move, velocity move, and additional high level instructions make it easy to implement the application’s motion profile.

• P3-RS485CON spare connector
• P3-FUSE-1 spare 3.15A module fuses
• P3-FUSE-2 spare 8.3A module fuses

• P3-USER-M Productivity3000 hardware users manual

* New! ... EtherNet/IP™ Scanner/Adapter as a Standard Protocol
The Productivity3000 controller now supports the ODVA's EtherNet/IP as a standard protocol.

• Through its embedded Ethernet port, the P3-550 CPU can support EtherNet/IP configurable as a Scanner or Adapter (or both simultaneously).


• The P3-550 CPU can communicate to devices using either Explicit messaging or Implicit "I/O" messaging methods.


• These two common implementations offer access to the majority of the EtherNet/IP devices available in the industry, including third-party controllers, drives and other I/O hardware.


• In Scanner mode, the P3-550 CPU supports up to 128 total connections with a maximum of 32 devices.


• Enabling the CPU to support and exchange EtherNet/IP messages simply requires completing fill-in-the-blank style configuration and Message instruction windows in the programming software.


• To assist with implementation, diagnostic tags are available to help determine which layer of the protocol may be preventing successful communications.

• Productivity Series - EtherNet/IP - Videos
