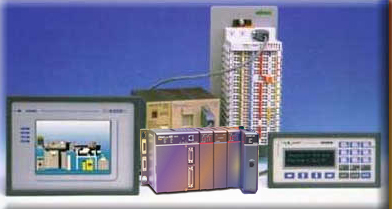

BUS
SYSTEMS
|
|
|
The
following list of bus/network structures will be supported. Completion
of the entire project is slated for 4th quarter of 1997. All panels
feature 3 serial ports excluding the MD00R-02/04, MD01R-02 and the
MD03R-02/04. These three have two serial ports. On all systems one
port is a dedicated bus port. The PLC port supports either RS232/422/485/20mA
and the PC/Printer port supports RS232. Certain bus systems are already
supported. Call EXOR technical support for the latest updates.
• Profibus DP
• Profibus FMS
• Device Net
• Interbus S
• SDS
• CANopen
• Siemens S7 MPI
• Klockner Moeller Suconet
Every Exor software package will include the above listed bus/network
drivers. This bus/network interface considers that regardless of the
network type, there is simply data flow to and from an interface board,
much like reading and writing data to PLC register memory. |

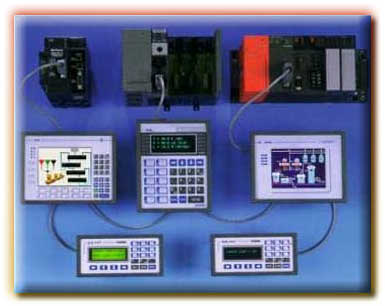

| UNINET
NETWORK |
|
|
- The
following networking specifications are provided with every UniOP
panel
- (excluding
the MD00R-02/04, MD01R-02 and the MD03R-02/04).
• Up to 19200 baud communication rate
• RS485 Half Duplex
• Token Passing
• Up to 32 panels can be networked with multiple Servers
and Clients
• Data access from multiple PLC's of the same or different
manufacturer
• Data transfer between PLC's of the same or different manufacturer
• Recipe transfer between PLC's of the same or different
manufacturer
• Fully independent operation for each panel, whether it
is server or client
• Any panel can access any PLC on the network
• Simplistic wiring
• Only minutes to configure
|
|
