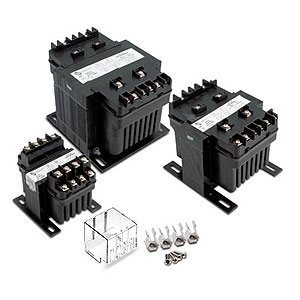

Hammond Control Transformers

Two series are available:

• HPS Imperator™ MQMJ Series - 240x480 / 120x240 VAC


• HPS Imperator™ PG Series - 120x240 / 12x24 VAC ... New!

HPS Imperator control power transformers from Hammond are specifically designed for high inrush applications requiring reliable output voltage stability. Designed to meet industrial applications where electromagnetic devices such as relays, solenoids, etc. are used, they maximize inrush capability and output voltage regulation when electromagnetic devices are initially energized.

Superior quality and design

• Hammond power transformers use Mylar, Nomex and other high-quality insulating materials.


• Insulation is used to electrically insulate turn-to-turn windings, layer-to-layer windings, primary-to- secondary windings and ground.


• These industrial control transformers are vacuum impregnated with VT polyester resin and oven-cured, which seals the surface and eliminates moisture. Filling the entire unit provides a strong mechanical bond and offers protection from the environment.


• This design utilizes superior insulation systems and is constructed with high quality silicon steel laminations, which provide optimum performance and reliability.


• The custom injection-molded cover, with its unique fin-shaped design, provides excellent cooling properties while protecting the coils and terminations from moisture, dirt and other industrial airborne contaminents.


• The heavy steel mounting feet are welded to the core, providing maximum strength and low noise in a compact design.

Features

• 50/60 Hertz, 600V class, machine tool rated control transformers
• VA range from 50 VA up to 1500 VA
• 50-150VA, temperature rise 55°C (131°F), insulation class 105°C (221°F)
• 250-1500VA, temperature rise 80°C (176°F), insulation class 130°C (266°F)
• Standard secondary fuse kits utilizing 13/32” x 1 1/2” midget/type CC fuse clips
• Optional primary fuse kits available utilizing 13/32” x 1 1/2” midget/type CC fuse clips
• Optional finger safe terminal covers available for all units
• cUL Listed (approved for U.S. and Canada) File E50394
• CE Mark standard on all units
• RoHS Compliant
• LIFETIME Warranty (Limited to mfg. defects)

Complete 240x480 Control Transformers Overview   Indent Only

Complete 120x240 Control Transformers Overview

Finger-safe terminal covers

These optional one-piece molded terminal covers are a quick and easy way to provide safety and protection in the workplace. They protect operators from potential shock hazards and guard against accidental contact with the fuses.

Fuse kits

These optional primary side fuse kits contain four fuse clips, four mounting screws, and complete instructions.
