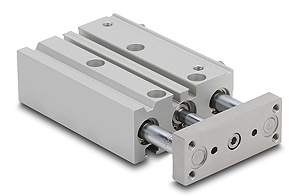

NITRA pneumatic guided actuator with dual
guide rods, bronze bushings, extruded aluminum housing and switch mounting
tracks.
- 90 sizes
available
- Eight bore
sizes from 12mm to 63mm
- Air cylinder
stroke lengths from 10mm to 250mm
- Double-acting
cylinders
Features
- Double Acting
- Magnet around piston for sensing
- Body material – 6463-T5 Aluminum – Anodized
- Dual guide rods – SAE440 Chrome Plated stainless steel
- Tooling Plate – free machining steel (low carbon 1018/1020)
- Heavy duty bronze guide bushings
- Seals – NBR (Buna-N)
- Universal mounting
- Interchangeable with other brands
- Temperature 23° – 158°F
- Pressure range 18-142 psi
- Proof (burst) pressure 213psi
- All models are available for same-day shipment
- 2-year warranty
Available
Bore Sizes: NITRA Dual Rod Guided Air Cylinders
| Bore Size |
Description |
| 12mm |
10 to 150mm stroke, dual location M5x0.8 female
ports, double acting |
| 16mm |
10 to 200mm stroke, dual location M5x0.8 female
ports, double acting |
| 20mm |
20 to 250mm stroke, dual location 1/8 inch NPT female
ports, double acting |
| 25mm |
20 to 250mm stroke, dual location 1/8 inch NPT female
ports, double acting |
| 32mm |
25 to 250mm stroke, dual location 1/8 inch NPT female
ports, double acting |
| 40mm |
25 to 250mm stroke, dual location 1/8 inch NPT female
ports, double acting |
| 50mm |
25 to 250mm stroke, dual location 1/4 inch NPT female
ports, double acting |
| 63mm |
25 to 250mm stroke, dual location 1/4 inch NPT female
ports, double acting |
|
