Air treatment units ------ LAW filter & regulatorAW filter & regulator



law

 shop


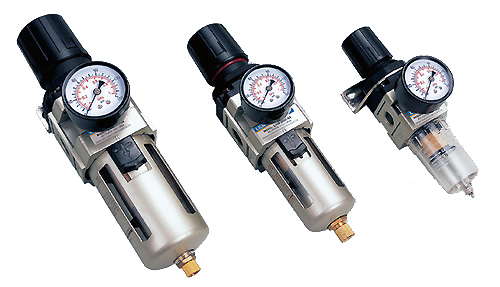

LAW units combination pneumatic particulate / moisture separation air line filters and adjustable pressure regulators are available for pneumatic air line filtering and regulation applications all in a single convenient unit. But it does not affect the excellent performance of filtration and decompression. These units are manufactured to ensure the quality, such as filter core. Outsourcing parts were selected and tested very strictly. All sizes have overflow function.
All Pricing includes mounting bracket and Regulators come with a Gauge



Ordering Code

LAW 3000     - 03 D
| | | |

Filter & Regulator

Specification
2000
3000
4000
5000

Joint Pipe Bore
01:G1/8
02:G1/4
03:G3/8
04:G1/2
06:G3/4
10:G1

Drain Tyre
Blank:Differential Drain
D:Automatic Drain
Graphic symbol

Specifications
Model LAW 2000-01 LAW 2000-02 LAW 3000-02 LAW 3000-03 LAW 4000-03 LAW 4000-04 LAW 4000-06 LAW 5000-06 LAW 5000-10
Rated Flow 550 550 2000 2000 4000 4000 4500 5500 5500
Joint Pipe Bore G1/8 G1/4 G1/4 G3/8 G3/8 G1/2 G3/4 G3/4 G1
Filtering Element Roughness 25u
Range of Adjustable Pressure 0.05-0.85MPa
Max. Adjustable Pressure 1.0MPa
Ensured Pressure Resistance 1.5MPa
Operating
Temperature Range		 5-60 deg C
Container Material Polycarbonate
Protective Cover Not Available Available
Drain Function Differential Drain Differential Drain Automatic Drain
Valve Type With Overflow

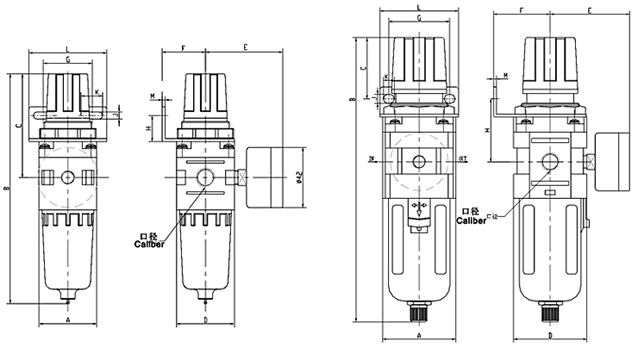

Overall Dimension
TYPE:LAW2000 TYPE:LAW3000-4000
Model Bore A B C D E F G H J K L
LAW2000 1/4 40 164.5 78 40 56.8 30 34 45 5.4 15.4 55
LAW3000 1/4-3/8 53 211 92.5 53 60.8 41 40 46 6.5 8.0 53
LAW4000 3/8-1/2 70 262.5 112 70 70.5 50 54 54 8.5 10.5 70
LAW4000-06 3/4 75 267 114 70 70.5 50 54 56 8.5 10.5 70
LAW5000 3/4-1 90 338 116 90 80.5 50 54 60 10 11 91
Pressure Character

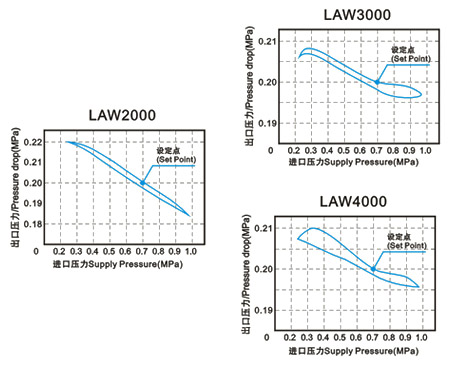

Supply Pressure=0.7 MPa Secondary Pressure=0.2MPa Flow=20L/min

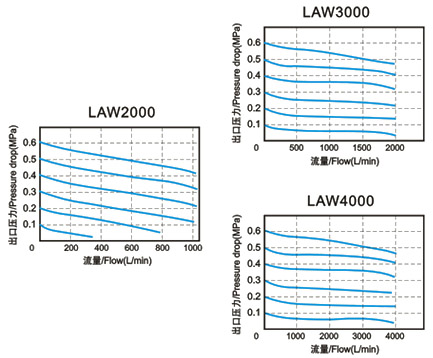

Flowing Character
Supply Pressure=0.7MPa
