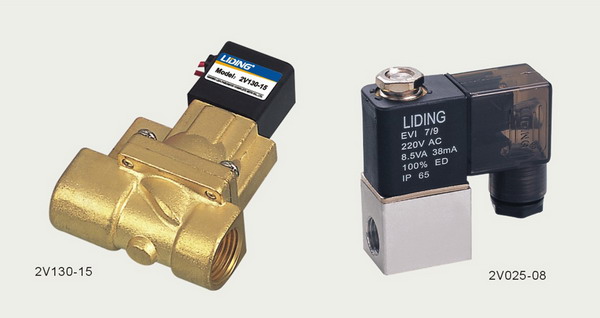

2V solenoid valve
2V solenoid valve

2V series solenoid valve can use with air, water and oil. Usually, they are used to control Directional control valve for large flow. Also, they can be used as a low power 2/3 valve.

Ordering Code

2V 025 - 08 - AC110V
| |   |   |

Specification code
2V :Two-position Two-way Solenoid Valve

Aperture of Flow Rate
025:2.5mm
031:3.1mm
130:13mm
250:25mm

Joint Pipe Bore
06:G1/8
08:G1/4
10:G3/8
15:G1/2
20:G3/4
25:G1

Standard Voltage
DC12V
DC24V
AC24V 50Hz/60Hz
AC110V 50Hz/60Hz
AC220v 50Hz/60Hz
AC380v 50Hz/60Hz
Graphic symbol


Specification

Model 2V025-06 2V025-08 2V031-08 2V130-10 2V130-15 2V250-20 2V250-25
Working Medium Air,water,Oil
Motion Pattern Direct Drive Type Guide Type
Type Normal Close Type
Aperture of Flow Rate 2.5 3.1 13 25
CV Value 0.23 6.2 23
Joint Pipe Bore G1/8 G1/4 G1/4 G3/8 G1/2 G3/4 G1
Operation Fluid Viscosity 20CST (Below)
Working Pressure 0.95Mpa
Max. Pressure Resistance Air,Water, Oil:0.05 ～0.7
Operating Temperature Range -10～80℃
Voltage Range ±10%
Protection Class/Insulation IP65/F Class
Power Consumption AC:4.5V/DC:3W
Material of Body Aluminum alloy (Nickel Coated)
Material of Oil Seal NBR or VITON
Shortest Excitation Time 0.05

Overall Dimension

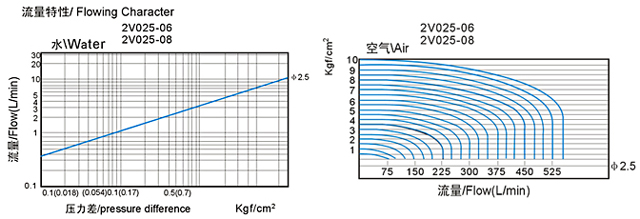

Flowing Character
