Pneumatic Valves & Accessories
3-Port, 2-Position (LD23 Series)
LD23 series solenoid air
valves are 3-way valves (stackable poppet style) with 1/4 BSP ports.
These pneumatic valves provide 2-position, normally closed, spring return
operation with either 24 VDC solenoid or 120 VAC solenoid coils.
- 3-way valves (stackable poppet style)
- 1/4 BSP ports
- 2-position, normally closed, spring return solenoid valves
| |
LD Series 3/2 Single Solenoid Valve 1/4" Port |
| LD23122DC12V |
3/2 Single Solenoid Valve G1/4" Port 12V DC complete with coils and plug top |
| LD23122DC24V |
3/2 Single Solenoid Valve G1/4" Port 24V DC complete with coils and plug top |
| LD23122AC24V |
3/2 Single Solenoid Valve G1/4" Port 24V AC complete with coils and plug top |
| LD23122AC110V |
3/2 Single Solenoid Valve G1/4" Port 110V AC complete with coils and plug top |
| LD23122AC220V |
3/2 Single Solenoid Valve G1/4" Port 220V AC complete with coils and plug top |
|
|
 |

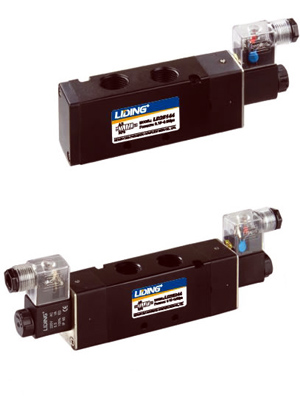

5-Port, 2-Position (LD25 Series)
LD25 series 2-position air solenoid
valves are body ported 5-port (4-way) spool valves. The single air valve
solenoid models provide 2-position, spring return operation. The double
solenoid valve models provide 2-position operation.
- Body ported, 5-port (4-way) spool valves
- 2 sizes available
- 1/4 or 1/2" BSP ports
- 2-position single solenoid; 2-position double solenoid
| |
LD Series 5/2 Single Solenoid Valve 1/4" Port |
| LD25122DC12V |
5/2 Single Solenoid Valve G1/4" Port 12V DC complete with coils and plug top |
| LD25122DC24V |
5/2 Single Solenoid Valve 1/4" Port 24V DC complete with coils and plug top |
| LD25122AC24V |
5/2 Single Solenoid Valve 1/4" Port 24V AC complete with coils and plug top |
| LD25122AC110V |
5/2 Single Solenoid Valve 1/4" Port 110V AC complete with coils and plug top |
| LD25122AC220V |
5/2 Single Solenoid Valve 1/4" Port 240V AC complete with coils and plug top |
| |
LD Series 5/2 Single Solenoid Valve 1/2" Port |
| LD25144-DC12V |
5/2 Single Solenoid Valve 1/2" Port 12V DC complete with coils and plug top |
| LD25144-DC24V |
5/2 Single Solenoid Valve 1/2" Port 24V DC complete with coils and plug top |
| LD25144-AC24V |
5/2 Single Solenoid Valve 1/2" Port 24V AC complete with coils and plug top |
| LD25144-AC110V |
5/2 Single Solenoid Valve 1/2" Port 110V AC complete with coils and plug top |
| LD25144-AC240V |
5/2 Single Solenoid Valve 1/2" Port 240V AC complete with coils and plug top |
| |
LD Series 5/2 Double Solenoid Valve 1/4" Port |
| LD25222DC12V |
5/2 Double Solenoid Valve 1/4" Port 12V DC complete with coils and plug top |
| LD25222DC24V |
5/2 Double Solenoid Valve 1/4" Port 24V DC complete with coils and plug top |
| LD25222AC24V |
5/2 Double Solenoid Valve 1/4" Port 24V AC complete with coils and plug top |
| LD25222AC110V |
5/2 Double Solenoid Valve 1/4" Port 110V AC complete with coils and plug top |
| LD25222AC240V |
5/2 Double Solenoid Valve 1/4" Port 240V AC complete with coils and plug top |
| |
LD Series 5/2 Double Solenoid Valve 1/2" Port |
| LD25244-DC12V |
5/2 Double Solenoid Valve 1/2" Port 12V DC complete with coils and plug top |
| LD25244-DC24V |
5/2 Double Solenoid Valve 1/2" Port 24V DC complete with coils and plug top |
| LD25244-AC24V |
5/2 Double Solenoid Valve 1/2" Port 24V AC complete with coils and plug top |
| LD25244-AC110V |
5/2 Double Solenoid Valve 1/2" Port 110V AC complete with coils and plug top |
| LD25244-AC240V |
5/2 Double Solenoid Valve 1/2" Port 240V AC complete with coils and plug top |
|
|
5-Port, 3-Position (LD25 Series)
LD25 series 3-position air valve solenoids
are body ported 5-port (4-way) spool valves and have double solenoids with
3-position, center closed or center exhaust operation.
- Body ported, 5-port (4-way) spool valves
- 2 sizes available
- 1/4" or 1/2" BSP ports
- 3-position, double solenoid center closed or center exhaust
|
|
