C-more HMI - Easy to configure, install and maintain ...

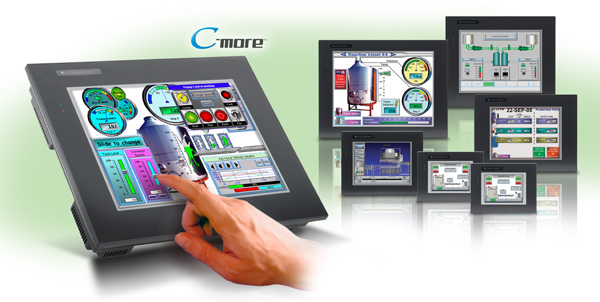

C-more industrial touch screens are designed to give you the best cost of ownership, considering initial price, features, ease of use, reliability and free award-winning technical support. More and more people have found that C-more touch panels have what it takes to meet most of their HMI application needs.

C-more is programmed with easy-to-use configuration software that provides a powerful set of tools for developing simple or very complex applications. The C-more software makes touchscreen panel setup and C-more programming quick and simple, and all C-more touch panels use the same programming package.

C-more EA9-T6CL-R Touch Screen Interface Panel
6-inch color TFT (5.7 inch viewable screen), base model (-R), 64k colors, 320 x 240 pixel QVGA screen resolution, no Ethernet support, one SD card slot
C-more 6" TFT Color Touch Panel - Base Model

C-more EA9-T6CL Touch Screen Interface Panel
6-inch color TFT (5.7 inch viewable screen), 64k colors, 320 x 240 pixel QVGA screen resolution, Ethernet support, one SD card slot
C-more 6" TFT Color Touch Panel Overview

C-more EA9-T8CL Touch Screen Interface Panel
8-inch color TFT (8.4 inch viewable screen), 64k colors, 800 x 600 pixel SVGA screen resolution, Ethernet support, one SD card slot
C-more 8" TFT Color Touch Panel Overview

C-more EA9-T10CL Touch Screen Interface Panel
10-inch color TFT (10.4 inch viewable screen), 64k colors, 800 x 600 pixel SVGA screen resolution, Ethernet support, one SD card slot
C-more 10" TFT Color Touch Panel Overview

C-more EA9-T12CL Touch Screen Interface Panel
12-inch color TFT (12.1 inch viewable screen), 64k colors, 800 x 600 pixel SVGA screen resolution, Ethernet support, HDMI port, two SD card slots
C-more 12" TFT Color Touch Panel Overview

C-more EA9-T15CL Touch Screen Interface Panel
15-inch color TFT (15 inch viewable screen), 64k colors, 1024 x 768 pixel XGA screen resolution, Ethernet support, HDMI port, two SD card slots
C-more 15" TFT Color Touch Panel Overview


C-more Programming Software & Cables

The C-more programming software (EA9-PGMSW) is a user-friendly, Windows-based graphical editor for configuring all C-more operator interface touch panels.

C-more Programming Software Overview



Compatibility

A great feature of the C-more HMI panels is their connectivity to many different types of devices. In addition to DirectLOGIC PLCs, you can connect to many Allen-Bradley, GE, Mitsubishi, Omron, or Modicon PLCs (see list below).

C-More can also connect to multiple devices and different brands of PLCs simultaneously!  C-more can act as an interpreter or "protocol bridge", passing PLC tag values back and forth between separate PLC protocols.

AB Ethernet drivers allow the simple connectivity of multiple panels and/or multiple Allen-Bradley PLCs. We have also added ControlLogix® Ethernet/IP Tag Messaging support. This feature helps increase productivity by reducing the time often required to map your PLC tag database into the HMI. You can import the RSLogix 5000 L5K file directly or with just a few clicks of the mouse you can directly enter your ControlLogix/ CompactLogix tags from the PLC into C-more. No mapping or translation required!

PLC Drivers and Supported Protocols

  • All AutomationDirect PLCs
    • Productivity3000 PAC
    • K-Sequence (DL05/06/105/205/350/405)
    • DirectNET (DL05/06/105/205/350/405)
    • DirectNET (DL330/340)
    • Modbus (DirectLOGIC DL05/06/205/350/405)
    • Modbus (CLICK)
    • ECOM Ethernet (DL05/06/205/405) Ethernet

  • Entivity
    • Entivity Modbus RTU (H2-WinPLC)
    • Entivity Modbus TCP/IP Ethernet (H2-WinPLC)

  • Modicon
    • Modicon Modbus RTU
    • Modicon Modbus TCP/IP Ethernet


  • Allen-Bradley:
    • AB DF1 Full Duplex (SLC500)
    • AB DF1 Half Duplex (MicroLogix/SLC500)
    • AB DF1 Full Duplex (PLC5
    • AB DH485 (MicroLogix/SLC500/AIC)
    • AB DF1 Full Duplex (MicroLogix)
    • AB DF1 Full Duplex Tag-Based (Control/CompactLogix/FlexLogix)
    • AB DF1 Half Duplex Tag-Based (Control/CompactLogix/FlexLogix)
    • AB EtherNet/IP Client (MicroLogix 1100)
    • AB EtherNet/IP Client (SLC5/05/ENI Adapter)
    • AB EtherNet/IP Client Tag-Based (Control/CompactLogix/FlexLogix)
    • AB EtherNet/IP Server:
      (Generic IO Messaging) (Control/CompactLogix/FlexLogix)

  • GE SNPX

  • Omron
    • Omron Host Link Adapter (C200/C500)
    • Omron FINS Serial (CS1/CJ1)
    • Omron FINS Ethernet

  • Mitsubishi
    • Mitsubishi Direct FX
    • Mitsubishi Q, QnA Serial
    • Mitsubishi Q, QnA Ethernet

  • Siemens
    • Siemens PPI (S7-200 CPU)
    • Siemens Ethernet (S7-200 CPU)
    • Siemens Ethernet (S7-300 CPU)
    • Siemens Ethernet (S7-1200 CPU)

C-more Communications Overview

C-more Communication Protocols & Cables


Networking

Full featured C-more panels can communicate via various types of networking protocols using the Ethernet network interface. The Ethernet port can be used for downloading a project to the panel, for communication with multiple PLCs (and multiple brands of PLCs), and for advanced features such as e-mail and FTP access and allowing the panel to act as a Web server.

ECOM Ethernet DirectLogic modules enable your full featured C-more panel to connect to your AutomationDirect PLC Ethernet network. For the high-speed Ethernet LAN 10/100BaseT network connection, the following PLC modules can be used.

PLC Ethernet Module Needed   PLC Ethernet Module Needed
DL05 H0-ECOM100   DL205 H2-ECOM100
DL06 H0-ECOM100   DL405 H4-ECOM100





The other Ethernet drivers included with all full featured C-more panels are:

Ethernet/IP™ [see note]           MODBUS TCP          Entivity (Think & Do) MODBUS TCP/IP

Remote Access and Control

The Remote Access and Control feature allows remote users to connect, monitor, and control any C-more panel that supports Ethernet. With the proper network configuration, remote users can connect with two simple methods:

  • PC Web Browser
    Using a Web browser on any PC to operate and monitor the local HMI system from any location with network access.

  • iPhone / iPad / iPod touch
    The C-more Remote HMI App allows remote access and control for mobile users who have a wi-fi or cellular connection. This App can be downloaded from the App StoreSM. More Info

  • No Additional Hardware required
    The C-more Remote Access feature resides in the panel and requires no option modules. Simply configure the network settings in the panel project and connect the panel to a network.

  • Multilevel Logon Security
    Three Remote Access user accounts can be configured and stored in the panel project. Each account allows up to five remote users to be connected simultaneously.

  • Multilevel Access Control
    Each account can be configured in one of the following levels of access:
    - View Only
    - View and allow Screen Change only
    - Full Control

  • Programmable Notification Tags
    Activation and Notification Tags provide an option for each account to have associated user configured TAGS that allow the Panel project or PLC project to indicate that a remote user is connected or to enable or disable the remote access feature. These tags can be used to activate alarms, events or notifications to alert local operators that a remote user is connected. The Disable/Enable TAGS can be assigned to a switch to allow local operators the ability to enable or disable the remote access feature for security or safety reasons.





Features:
C-more touch panels are fully programmable and provide power and flexibility through a vast set of features. Color TFT touch screen monitors are available in 6", 8", 10", 12" or 15" versions.

  • Pre-built touch panel components for easy screen design

  • Screen objects such as Toggle Switch, Slide Switch, Selector Switch, Throw Switch, Thumbwheel Switch, Meters, PID Faceplates, Analog/Digital Clock

  • SD card for user program backup and logging (not all models)

  • Field expandable user memory

  • All models support 64K colors

  • Multiple languages (up to 9)

  • Serial PLC Interface RS-232C/422/485

  • Ethernet port 10/100 MB

  • 2 USB ports, Type B (downloads and programming) and Type A (device options)

  • Up to 9999 screens, depending on complexity

  • Built-in clock and calendar

  • Built-in soft keypad for numeric and alphanumeric entry

  • Password protection for every touch object

  • Passwords for up to eight user groups

  • Unlimited levels of undo and 16 levels of redo

  • Import bitmaps or bitmap objects, such as pushbuttons

  • 40-character tag names

  • Sound - Audio line out (full featured models)

  • Animation Objects

  • Project Simulation

  • Object grouping

  • Color gradation for objects

  • Analog touch overlay (no predefined touch cells)

  • Overlapping Objects

  • Background Screens

  • User Library, including:
    - Objects
    - Screen
    - Graphic
    - Sound
    - Video

  • Send e-mail

  • Web server

  • 2-year warranty

  • FTP Server

C-more Features

C-more Overview
