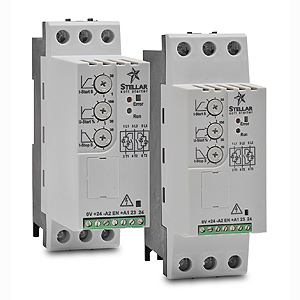

STELLAR™ SR22 Series Compact 3-Phase Soft Starters

5A to 40A rated current versions @ 208–460V 45 mm and 55 mm standard sizes SR22 semi-conductor solid state soft starters provide many advantages when used instead of electro-mechanical contactors to control 3-phase AC induction motors. The SR22 motor soft starters use thyristors for controlled reduced voltage motor starting and stopping These low voltage soft starters then switch to internal contacts for efficient running at the rated speed Applications General purpose soft start applications where traditional across-the-line starting or wye-delta starting would typically be appropriate. Application types include: Agitator, Air Compressor, Ball Mill, Centrifuge, Chiller, Conveyor, Crusher, Escalator, Fan (Low and High Inertia), Feeder, Grinder, Hammer Mill, Lathe Machine , Mills (Flour, etc.), Mixer (Unloaded or Loaded), Pelletizer, Plastic and Textile Machines, Press (Flywheel), Pump (Centrifugal), Pump (Positive Displacement), Rolling Mill, Saw (Band), Saw (Circular), Screen (Vibrating), Transformer, Voltage Regulator, Tumbler, Wood Chipper.

SR22 Series Soft Starters

Features 5-40A @ 208-460V 24 VDC control voltage Easily and separately adjustable motor start and stop times Two-phase control Internal bypass contacts for run Error and Run LEDs DIN rail mounting Cooling fans (available option) Two standard-size widths: 45 mm & 55 mm Six error/trip indications: AC Supply, Control Supply, Overheated, Bypass Failure, Shear Pin, Overcurrent Standards and Approvals UL listed* (E333109) *(optional fans are UL recognized: E132139, E77551, E89936) RoHS CE Optional Soft Starter Accessories Cooling fan (increases # of motor starts/hour)

Advantages Mechanical Advantages Smooth acceleration; reduced shock and starting stress Extend lifespan of mechanical drive train components Fluid couplings and some clutches can be eliminated Electrical Advantages Reduced motor starting current More motors or larger motors can be started from lower-capacity power sources Allows motors to be started more frequently Internal mechanical contacts open and close under reduced current, increasing lifespan and reliability Economic Advantages Lower overall costs for new installations Reduced maintenance and replacement of mechanical drive train components Reduced starting current reduces electrical power costs by reducing peak demand Soft Starter Selection / Sizing Our Sizing Chart contains 3 easy steps to properly size your soft starter based on horsepower, voltage, and starting class
