NIP-xxTS Industrial Computer
shop
Industrial Monitors Accessories

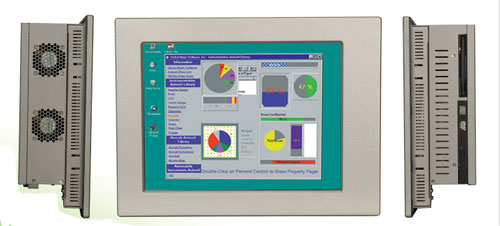

New! ... The NIP-xxTS TM series of industrial flat panel LCD computer offers outstanding quality and value in a ruggedized package and at low competitive prices. Compact size and shallow mounting depth makes NIP flat panel computers ideal for installation in harsh environments and for many factory automation applications.

  • sizes 15”,17" and 19" are available in NEMA sealed panel mounted display and have 5-wire Analog Resistive touch screens.

  • This versions have built-in 100-240 VAC input power supplies, NEMA 4/4x/12 panel mountable front panels, and are less than 2.75” deep when panel mounted.

  • They have Analog Video (VGA) connections and provide USB or RS-232 connection for versions with touch screen.

  • The entire series is UL/cUL listed, complies with European CE and RoHS requirements, and is UL approved for Class I and II, Division 2 hazardous locations.

Features

  Most popular panel PC form factor
   High brightness industrial grade panel
  High performance Intel Pentium 4 / Celeron CPU support   Aluminum die-casting front panel meet IP65 standard
  Dual DDR memory DIMM support up to 2GB SDRAM   Fully I/O function support: 1 x PCI slot, 6 x COM (1 inside for Touch Screen), 4/6 x USB, 1 x CF socket
  Serial ATA interface support   Dual 10/100/Gigabit Ethernet support
  Easy installing and mechanism design
   RoHS Compliance
‧ Chipset integrated Intel Extreme Graphic 2 engine
‧ Integrated LVDS LCD interface. Better LCD compatibility and graphic quality.
‧ Dual independent display.
 More application for multi-monitor.
‧ Screen rotation function.
Screen rotation for more flexibility usage.
‧ Lower chipset power consumption and advance CPU power stepping function.
 Simplified thermal controlling.
Higher performance in data storage and operating.
  ICH5 Benefit:
‧ Integrated Serial ATA support.
Most powerful Panel PC solution !!
‧ More USB 2.0 ports supports.

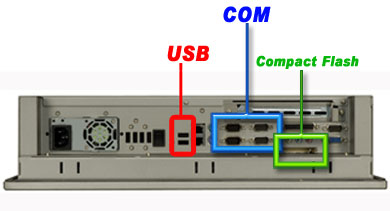

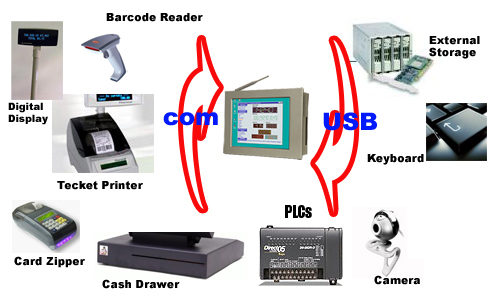

NIP-series combines multiple traditional UART ports, 5 RS-232 ports and one RS-232/422/485 port, and 4 / 6 ports most popular USB 2.0 interface for IO extension.
Additionally,also support one Compact Flash type II socket for embedded storage usage.		 a
s
Dual 10/100/Gigabit Ethernet support
b

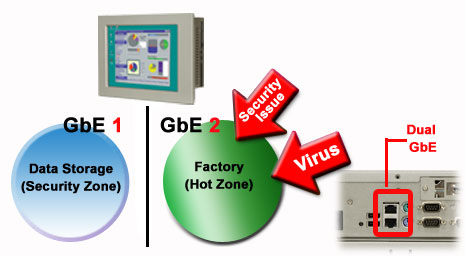

The NIP-series provides dual independent gigabit LAN ports.
In HMI application environments, many system integrator prefer dual independent LAN to allocation factory zone and data storage zone to reduce the network collision and crash, or virus infection.

NIP-15TS 15 TFT LCD Industrial computer with Touch screen,HDD, Multiple Ethernet, Serial and USB Ports, complete with Windows 7 loaded. ROHS  15" 350 cd/m² XGA Panel PC with POS-9455 R11 version,Pentium® Dual-Core E2160 1.8GHz CPU, 1GB DDR2 RAM, Silver color,PSU ACE-A618AP, touch screen, $2,390
NIP-17TS 17 TFT LCD Industrial computer with Touch screen,HDD, Multiple Ethernet, Serial and USB Ports, complete with Windows 7 loaded. ROHS  17" 350 cd/m² XGA Panel PC with POS-9455 R11 version,Pentium® Dual-Core E2160 1.8GHz CPU, 1GB DDR2 RAM, Silver color,PSU ACE-A618AP, touch screen, $2,590
NIP-19TS 19 TFT LCD Industrial computer with Touch screen,HDD, Multiple Ethernet, Serial and USB Ports, complete with Windows 7 loaded. ROHS  19" 350 cd/m² XGA Panel PC with POS-9455 R11 version,Pentium® Dual-Core E2160 1.8GHz CPU, 1GB DDR2 RAM, Silver color,PSU ACE-A618AP, touch screen, $2,790
