Do you need an industrial AC motor for the long run? AutomationDirect offers Marathon motors for your needs.
Our quality AC variable speed motors will fit the bill for a variety of induction motor applications requiring a
waterproof motor, squirrel cage motor, brushless motor or NEMA motor.
Marathon Inverter-Duty and Vector-Duty AC Motors
AutomationDirect now offers a wider variety of AC variable speed motors (both inverter-duty and vector-duty motors) from Marathon Electric
Manufacturing Corporation®. These vector-duty and inverter-duty industrial motor models, unless otherwise stated,
are rated for continuous operation in a 40 C ambient and for altitudes up to 3,300 feet (1,000 meters) above sea level.
The Marathon Electric motor lines have been carefully selected to be
performance-matched with the DURAPULSE and GS series AC drives. The

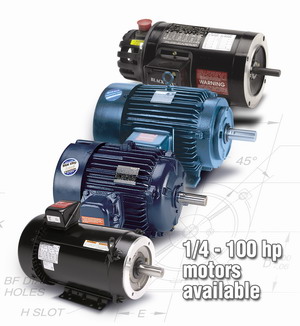

offering includes models ranging from ¼ hp to 100 hp, that feature dual
230/460 VAC and 575 VAC voltages and a base speed of 1200 or 1800 RPM.
AutomationDirect is proud to partner
with Marathon Electric to provide our customers with premium quality AC
motor models for your blower motor, induction motor, pump motor or
other industrial motor applications at great prices. Marathon Electric
has over 15 years experience in the design, manufacturing and
application of AC variable speed motors and well over 15,000 hours of
laboratory testing in state-of-the-art facilities. Marathon Electric's
expertise in the application of AC drives with all induction motor
products is unsurpassed. Plus, at AutomationDirect, you can purchase a
Marathon motor at an incredibly affordable price.
Over two
dozen premier manufacturers of AC variable frequency drives specify
Marathon Electric's performance-matched industrial motor products in
their drive systems. These are cost-effective, high performance AC
motors that, in conjunction with today’s drive technology, provide
enhanced performance in virtually any industrial or commercial
application.

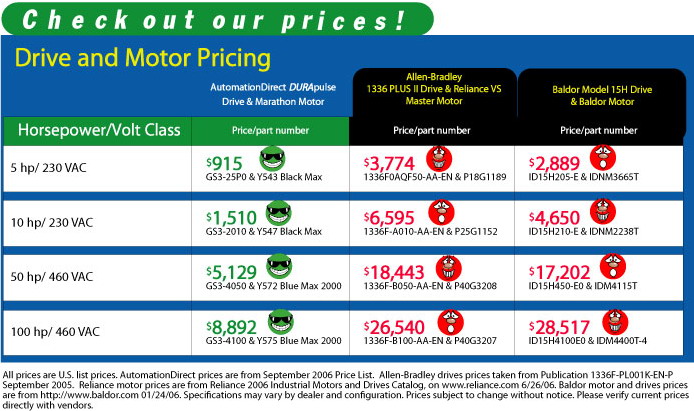

Check out our new lower prices on both AC drives and motors!

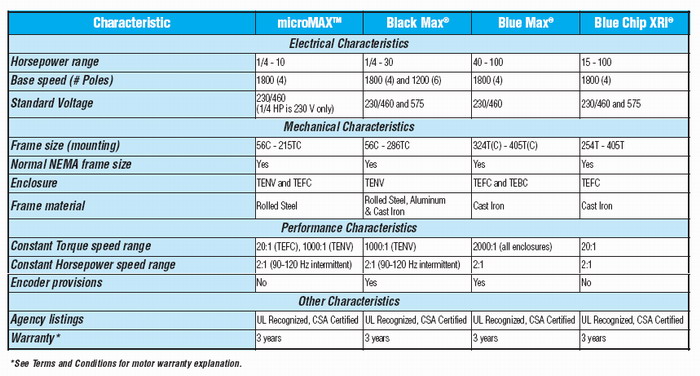

microMAX®
1/4 to 10 hp TENV and TEFC motors
offer dual mounting options, C-face rigid base and C-face round body
cooler running and lighter weight design, allowing an easy transition from PMDC
MicroMAX® Series AC Inverter-Duty Motors (0.25 Hp to 10 Hp) from ...
$107.00
to $758.00
Black Max®
0.25 Hp to 30 Hp TENV motors
provisions for encoder mounting
used in any high performance application with closed or open loop vector controls or Volts/Hertz drives
for countless machinery applications where full torque at zero speed is required.
low inertia design provides extremely quick response to accel and decel commands, as well as changes in direction
Uses include machine tools, conveyors, palletizers, crane and hoist systems,
accumulators, packaging equipment, extruders and converting equipment.
Black Max® Vector Duty Motors (0.25 Hp to 30 Hp) from ...
$158.00
to $2,515.00
Blue Max® 2000
40 Hp to 100 Hp TEBC and TEFC motors
provisions for encoder mounting
used in variable frequency drive applications requiring full rated torque at zero speed
for closed or open loop (sensorless) vector control
cast iron construction makes this motor an ideal choice for process lines, chemical plants, paper mills
or any other environment requiring cast iron or "severe duty" construction.
Blue Max® 2000, Vector Duty Motors (40 Hp to 100 Hp)
... $2,383.00
to $5,831.00
Blue Chip XRI®
15 Hp to 100 Hp TEFC Ultra High Efficiency motors
optimize motor system efficiency, reduce electrical power consumption and costs, and improve system reliability
offer substantial energy savings when used on high cycle or long run time applications
uses include compressors, pumps, conveyors, blowers, and other machinery in dirty or dusty environments.
Blue Chip XRI motors meet NEMA Premium® efficiency levels
Blue Chip XRI® - Ultra High Efficiency Inverter-Duty Motors (15 Hp to 100 Hp) ...
$833.00
to $5,054.00
575V Black Max® and Blue Chip XRI® Motors Now Available
NOTE: For further details or technical specifications, select the desired product category and select
the "Products" tab and click on the desired "Item Code" link, or select the "Technical Info" tab.
Applications
Typical applications for these motors include:
Variable torque loads Applications include: Fans, blowers and centrifugal pumps.
Torque varies as the square of the speed, and horsepower as the cube of the speed.
Operation below base speed significantly lightens the load on the motor. While most variable torque
applications do not require the motor to operate below half speed, the motor is fully capable of operation
to zero speed. Operation above base speed significantly adds to the load on the motor; therefore, you must
carefully review applications requiring variable torque above base speed. Refer to the product technical
specifications for use of general purpose three phase motors on variable frequency drives.
Constant torque loads: Conveyors, elevators, hoists, extruders, positive displacement pumps, mixers and converting equipment.
Torque remains constant throughout the range of operation, and extra care should be taken in the proper
application of motors, especially at very low speeds. Most constant torque (C.T.) applications don’t require operation
below 10:1 (i.e. 6 Hz operation on a 60 Hz motor), but an increasing number of applications historically reserved for
servo and/or stepper systems are being served with motors capable of operation beyond 20:1…even up to 2000:1 (zero speed,
constant torque).
Applications requiring greater than 20:1 C.T. are ideal for MicroMAX®, Black Max® or Blue Max® motors.
These motors provide full rated torque within their listed speed range, without exceeding a Class F temperature rating
while under inverter power (many operate at Class B). Ratings have been developed, based on extensive testing on
IGBT inverters, set at a minimum 3 KHz (or equivalent) carrier frequency.
These vector-duty and inverter-duty motors are designed for operation at 150% of rated load for one minute, up to
the base speed of the motor (overload capability declines to 100% as the motor reaches maximum constant HP speed).
These motors accommodate constant horsepower operation to 1-1/2 to 2 times base speed, subject to the motor’s maximum
safe mechanical speed limit. Please refer to product technical and performance specifications for each motor’s capability.
Motors rated for zero RPM continuous duty (1000:1 or 2000:1) must be powered by vector drives to produce rated torque
without overheating. Optimum zero speed and low-speed full torque performance may require a closed loop vector drive
(with encoder feedback).
Constant horsepower loads Applications include: Coil winders, band saws, grinders, and turret lathes.
Operation requires the motor to deliver the same
horsepower rating, regardless of shaft speed. Torque increases at low speed and decreases at higher speed. Most general
purpose motors can deliver constant horsepower up to 1 1/2 times base speed. However, many constant horsepower applications
require operation to twice base speed, and some, such as coil winders, up to 4 times base speed. MicroMAX®, Black Max® and
Blue Max® motors are designed for 1 1/2 to 2 times base speed.
Other Application Considerations:
Horsepower or torque requirements at various speeds
Desired speed range of the load and motor
Acceleration and deceleration rate requirements of the process being controlled
Starting requirements including the frequency of starting and a description of the load (reflected
inertia at the motor, load torque during starting)
Whether the application is a continuous process or duty cycle of starts, stops and speed changes
A general description of the type of application including the environment in which the VFD system
components must operate (determines motor enclosure and/or explosion proof classification)
Description of the available electrical power supply and wiring
Special performance requirements, if any
Whether the drive will be configured with a by-pass circuit. In case of its deployment, the motor will operate
like its fixed speed counterpart and may require a
NEMA B design which limits in-rush current, or selection of a larger motor starter or other protective circuitry.
NOTE: Please be aware of shipping restrictions on motors before placing your motor order.
Most of the MicroMAX series motors are
currently available as in-stock items and will ship the same day from
AutomationDirect, but the larger non-stock motors that must ship via
truck (Black Max, Blue Max and Blue Chip-XRI Series motors) will be
drop-shipped from Marathon Electric (usually the same business day or
within 24 hours).
Motors with Encoders (Yxxx-A77x part numbers) are custom assembled and will drop-ship from Marathon Electric within 48-72 hours.
SHIPPING RESTRICTIONS ON LARGE MOTORS:
Due to current weight restrictions, large motors that must be shipped via truck cannot be shipped to Alaska, Hawaii, Puerto
Rico or the Virgin Islands.
"NEXT DAY" truck delivery options on motors are only available for a very limited number of in-stock items and
are subject to regional limitations. Orders must be placed no later than 12:00pm (noon) Eastern time and...
AN EXPEDITE FEE WILL BE CHARGED.
Saturday delivery is NOT available for motors that must ship via truck (ground service).
In-stock motors will typically ship the same day via the AutomationDirect preferred shipping provider.
Price Check
Below is just a sample of what we have. Click here for a
complete listing of parts and prices for this product family, or click here to download a PDF of our complete price
list. Note: All prices are given in US $.
Product
Price
Y500 - Inverter-Duty AC Motor, Marathon Electric microMAX Series, 230 VAC, 3 Phase, 0.25 Hp,
1800 RPM, 56C Frame
$107.00
Y360 - Inverter-Duty AC Motor, Marathon Electric microMAX Series, 230/ 460 VAC, 3 Phase, 0.5 Hp,
1800 RPM, 56C Frame
$150.00
Y368 - Inverter-Duty AC Motor, Marathon Electric microMAX Series, 230/ 460 VAC, 3 Phase, 2.0 Hp,
1800 RPM, 145TC Frame
$337.00
Y372 - Inverter-Duty AC Motor, Marathon Electric microMAX Series, 230/ 460 VAC, 3 Phase, 5.0 Hp,
1800 RPM, 184TC Frame
$477.00
Y996 - Inverter-Duty AC Motor, Marathon Electric microMAX Series, 230/ 460 VAC, 3 Phase, 10 Hp,
1800 RPM, 215TC Frame
$758.00
Y592 - Inverter-Duty AC Motor, Marathon Electric Black Max Series, 230/ 460 VAC, 3 Phase, 0.25 Hp, 1800 RPM, 56C Frame
$158.00
Y534 - Inverter-Duty AC Motor, Marathon Electric Black Max Series, 230/ 460 VAC, 3 Phase, 0.5 Hp, 1800 RPM, 56C Frame
$198.00
Y547 - Inverter-Duty AC Motor, Marathon Electric Black Max Series, 230/ 460 VAC, 3 Phase, 10 Hp, 1800 RPM, 215TC Frame
$941.00
Y393 - Inverter-Duty AC Motor, Marathon Electric Black Max Series, 230/ 460 VAC, 3 Phase, 30 Hp, 1800 RPM, 286TC Frame
$2,000.00
Y592-A772 - Inverter-Duty AC Motor, Marathon Electric Black Max Series with HS35 Encoder, 230/ 460 VAC,
3 Phase, 0.25 Hp, 1800 RPM, 56C Frame
$649.00
Y534-A772 - Inverter-Duty AC Motor, Marathon Electric Black Max Series with HS35 Encoder, 230/ 460 VAC,
3 Phase, 0.5 Hp, 1800 RPM, 56C Frame
$689.00
Y547-A772 - Inverter-Duty AC Motor, Marathon Electric Black Max Series with HS35 Encoder, 230/ 460 VAC,
3 Phase, 10 Hp, 1800 RPM, 215TC Frame
$1,421.00
Y571 - Inverter-Duty AC Motor, Marathon Electric Blue Max Series, 230/ 460 VAC, 3 Phase, 40 Hp, 1800 RPM, 324T Frame TEFC
$2,383.00
Y573 - Inverter-Duty AC Motor, Marathon Electric Blue Max Series, 230/ 460 VAC, 3 Phase, 60 Hp, 1800 RPM, 364T Frame TEFC
$3,800.00
Y574 - Inverter-Duty AC Motor, Marathon Electric Blue Max Series, 230/ 460 VAC, 3 Phase, 75 Hp, 1800 RPM, 365T Frame TEFC
$4,315.00
Y575 - Inverter-Duty AC Motor, Marathon Electric Blue Max Series, 230/ 460 VAC, 3 Phase, 100 Hp, 1800 RPM, 405T Frame TEFC
$5,831.00
Y571-A774 - Inverter-Duty AC Motor, Marathon Electric Blue Max Series with HS35 encoder, 230/ 460 VAC, 3 Phase,
40 Hp, 1800 RPM, 324T Frame TEFC
$2,954.00
Y575-A774 - Inverter-Duty AC Motor, Marathon Electric Blue Max Series with HS35 encoder, 230/ 460 VAC, 3 Phase,
100 Hp, 1800 RPM, 405T Frame TEFC
$6,412.00
E205 - Inverter-Duty AC Motor, Marathon Electric Blue Chip Premium XRI Efficiency Series, 230/ 460 VAC,
3 Phase, 15 Hp, 1800 RPM, 254T Frame
$833.00
E208 - Inverter-Duty AC Motor, Marathon Electric Blue Chip Premium XRI Efficiency Series, 230/ 460 VAC,
3 Phase, 30 Hp, 1800 RPM, 286T Frame
$1,443.00
E209 - Inverter-Duty AC Motor, Marathon Electric Blue Chip Premium XRI Efficiency Series, 230/ 460 VAC,
3 Phase, 40 Hp, 1800 RPM, 324T Frame
$1,887.00
E211 - Inverter-Duty AC Motor, Marathon Electric Blue Chip Premium XRI Efficiency Series, 230/ 460 VAC,
3 Phase, 60 Hp, 1800 RPM, 364T Frame
$3,317.00
E213 - Inverter-Duty AC Motor, Marathon Electric Blue Chip Premium XRI Efficiency Series, 230/ 460 VAC,
3 Phase, 100 Hp, 1800 RPM, 405T Frame
